A static load is a force applied slowly and gradually to a structure, remaining essentially constant over time. It does not cause the structure to accelerate, so the structure reaches equilibrium under the load. The self-weight of a building, soil pressure on a retaining wall, and the weight of furniture in a room are all static loads. In contrast, a dynamic load varies significantly with time and causes the structure to accelerate, generating additional internal forces through inertia. Understanding this distinction is fundamental to structural engineering design and determines which Australian Standards apply to a project.

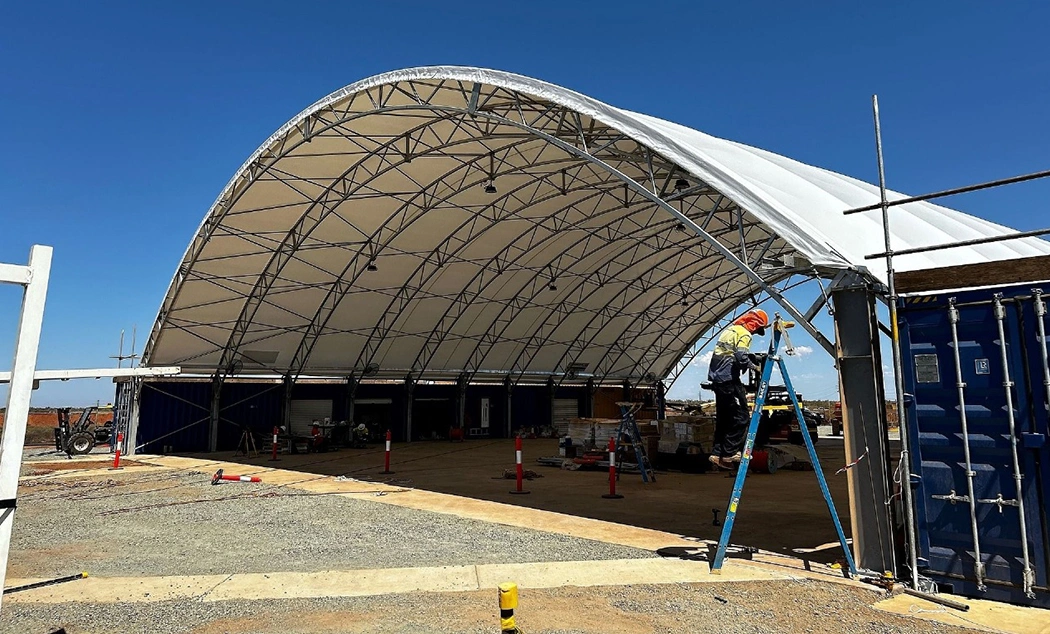

What Is a Static Load in Structural Engineering?

A static load is defined by two characteristics: it is applied slowly enough that the structure has time to reach equilibrium, and it does not cause significant acceleration in the structural members. When a structure is in static equilibrium, the sum of all forces and moments acting on it equals zero. The structure is not moving and not accelerating.

The most direct way to understand a static load is to compare it to placing a book on a shelf. The book applies a static load: the shelf deflects slightly and reaches a new equilibrium position. The load is constant. If the same mass were dropped onto the shelf, it would apply a dynamic (impact) load, and the forces experienced by the shelf would be far greater than those from the same mass placed gently.

In structural engineering practice, static loads are analysed using the equations of static equilibrium. The structural engineer determines the reactions at supports, bending moments, shear forces, and axial forces throughout the structure, then checks that each element has sufficient capacity under the design loads.

Types of Static Loads and Australian Standards

Australian Standard AS 1170.1 (Structural Design Actions: Permanent, Imposed and Other Actions) governs the determination of static loads for building design. The main categories are:

• Dead load (permanent action, G): The self-weight of the structure and all permanently fixed elements. A concrete slab, steel frame, roof cladding, and floor finishes all contribute dead load. Dead load is always a static load. AS 1170.1 Table 1.1 provides densities for common materials.
• Superimposed dead load (SDL): Permanent non-structural elements added after construction, such as floor finishes, suspended ceilings, fixed partitions, and services. Also static.
• Live load (imposed action, Q): Loads from people, furniture, and moveable equipment. Although live loads change as the building is used, they are applied slowly enough to be treated as static loads in most residential and commercial building design. AS 1170.1 Table 3.1 specifies minimum live load values by occupancy (for example, 1.5 kPa for residential floors, 3.0 kPa for office floors).
• Earth and hydrostatic pressure: Lateral soil pressure on retaining walls and basement structures, and water pressure on submerged elements. These are largely static, though groundwater fluctuations introduce variation. Retaining wall engineering requires careful assessment of both static and long-term soil pressures.
• Prestress forces: The post-tensioning force applied to prestressed concrete structures is treated as a static load in most cases.

What Is a Dynamic Load?

A dynamic load is a force that varies significantly with time, is applied suddenly or repeatedly, and causes the structure to accelerate. The critical difference is the presence of inertial effects. When a structural member accelerates under a dynamic load, Newton’s second law (F = ma) means the member experiences internal forces beyond those from the load alone. These inertial forces increase with the rate of load application and with the mass and stiffness of the structure.

Dynamic analysis must account for the structure’s natural frequency, damping ratio, and mode shapes. This is more complex than static analysis and is required only when dynamic effects are significant relative to the static response.

Common dynamic loads in building structures include:

• Wind load (Wu): Atmospheric pressure and suction across building surfaces. Wind is inherently dynamic because it fluctuates with gusts. However, AS/NZS 1170.2 permits most buildings to be designed using equivalent static wind pressures, avoiding full dynamic wind analysis except for tall or wind-sensitive structures.
• Earthquake load (Ed): Ground acceleration during seismic events generates inertial forces in the structure proportional to its mass. Melbourne is in a low seismic zone, but AS 1170.4 still requires earthquake actions to be considered. Most Melbourne buildings can be designed using the equivalent static force method.
• Crane and hoist loads: Overhead cranes apply vertical and horizontal loads to support structures with dynamic amplification factors that significantly exceed the equivalent static load. The AS 1418 series governs crane structural design and specifies the amplification factors required.
• Machinery and vibration: Rotating or reciprocating machinery applies cyclic forces at specific frequencies. If the machine’s operating frequency coincides with the structure’s natural frequency, resonance can produce severe responses even from modest static forces.
• Impact loads: Vehicle impacts on barriers, columns, and dock levellers. These are highly dynamic and require specific design provisions under AS 1170.1 and vehicle impact standards.

Static Load vs Dynamic Load: Key Differences

The following table summarises the key differences between static and dynamic loads for structural engineering purposes:

How Static Loads Travel Through a Structure

Understanding load path is central to structural engineering. A static load applied to a floor slab does not stay there: it travels through the structure to the foundations by a sequence of load transfer steps. The structural engineer traces this path at the design stage to ensure every element in the chain has adequate capacity.

In a typical Melbourne residential extension, the load path for a static floor live load might work as follows:

1. Floor live load is applied to the concrete slab or floor joist system.
2. The slab or joists span to supporting beams or load-bearing walls.
3. Beams transfer load to columns or loadbearing walls at their ends. Load bearing wall assessment identifies which walls carry structural load in this path.
4. Columns and walls carry the load down to the floor slab at ground level or to footings.
5. Footings distribute the load into the soil. The soil must have sufficient bearing capacity to accept the static load without excessive settlement.

This load path analysis applies equally to dead loads, live loads, and static lateral loads such as earth pressure on a retaining wall or basement. The structural engineer ensures the load path is complete and that no link in the chain is undersized.

Load Combinations for Static Design Under AS 1170

Static loads do not act in isolation. AS 1170.0 (General Principles) specifies how dead load, live load, and other loads must be combined for structural design. The factored load combinations ensure the structure has adequate safety against both strength failure and serviceability issues such as excessive deflection.

The primary ultimate limit state (ULS) load combinations for static loads under AS 1170.0 are:

• 1.35G: Dead load alone, increased by a factor of 1.35 to account for uncertainty in self-weight.
• 1.2G + 1.5Q: Dead load plus live load, the most common combination for floors and roofs carrying occupant loads.
• 1.2G + 1.5Q + Wu: Dead and live loads combined with wind (where wind is classified as equivalent static).
• 0.9G + Wu: Minimum dead load plus wind uplift, used to check overturning and uplift on light structures.

The serviceability limit state (SLS) combinations use lower load factors to check deflections and crack widths under normal in-service conditions. Typically 1.0G + 0.7Q applies for long-term serviceability checks.

For retaining walls and foundations, AS 4678 and AS 2870 specify the appropriate load combinations and factors for soil-bearing and geotechnical design.

Static Load Examples in Melbourne Building Projects

Static loads are present in every building project. Some practical examples from common Melbourne project types:

• Residential rear extension: The timber floor joists carry dead load (flooring and self-weight) and live load (occupants and furniture). The engineer calculates the joist spans and sizes using AS 1720.1 timber structures standard, all under static load analysis.
• Load-bearing wall removal: When a wall is removed for an open-plan renovation, a new beam carries the static load previously taken by the wall. A structural engineer report Melbourne homeowners receive will include beam sizing calculations based on the static dead and live loads above.
• Residential retaining wall: A concrete or masonry retaining wall on a sloped block carries static earth pressure from the retained soil. The pressure increases linearly with depth (triangular distribution), and the wall is designed to resist overturning, sliding, and bearing failure under this static lateral load.
• Commercial floor slab: A warehouse or office slab-on-ground carries static floor live loads from forklifts, racking, or office occupancy. The engineer sizes the slab reinforcement based on AS 3600 (concrete structures) for static loading.

When Does Static Load Analysis Apply?

Static load analysis is the standard approach for the great majority of structural engineering work on Melbourne residential and commercial projects. Provided dynamic effects are minor, or where Australian Standards permit equivalent static methods, static analysis produces safe and economical designs.

Static analysis is appropriate for:

• Gravity load design (dead loads and live loads) for all building types
• Retaining wall and basement wall design under soil and hydrostatic pressure
• Wind design for most low-rise and medium-rise buildings using AS/NZS 1170.2 equivalent static pressures
• Earthquake design for regular, low to medium-rise buildings using the AS 1170.4 equivalent static force method
• Foundation design for static vertical and lateral loads
• Load-bearing wall and beam design for residential alterations and extensions

When Is Dynamic Analysis Required?

Full dynamic analysis is needed when the simplified equivalent static methods in Australian Standards are not sufficient. It becomes necessary for:

• Tall or slender structures where wind-induced dynamic response (vortex shedding, flutter) is significant
• Industrial facilities with overhead cranes generating significant dynamic forces
• Buildings with heavy rotating or reciprocating machinery where vibration control is required
• Long-span floors in offices, gymnasiums, or entertainment venues where walking-induced vibration must be assessed
• Structures in higher seismic zones or with irregular geometry where the equivalent static method does not capture the actual seismic response
• Mezzanine floors subject to forklift or racking loads with dynamic components

For most Melbourne residential and commercial projects, static analysis methods are entirely appropriate. Principal Built Engineering assesses each project to determine whether dynamic effects need specific consideration and uses the most appropriate analysis method for the situation.

Equivalent Static Methods for Dynamic Loads

Australian Standards for wind (AS/NZS 1170.2) and earthquake (AS 1170.4) both permit the conversion of dynamic loads to equivalent static forces for design of regular structures. This allows structural engineers to use familiar static analysis tools while still producing designs that account for the dynamic nature of these loads.

The equivalent static method for wind converts the dynamic wind pressure (including gust effects) to a set of static pressures applied to the building surfaces. For earthquake, the method converts the seismic ground motion to a set of static horizontal forces applied at each floor level, with the forces distributed proportional to floor mass and height.

These equivalent static approaches are well-validated for regular structures within the scope of the standards and are the standard design method for the vast majority of Melbourne building projects.

FAQs: Static Load and Dynamic Load

What is the simplest way to explain a static load in structural engineering?

A static load is a force that acts on a structure without causing it to accelerate. The structure sits in equilibrium under the load. The self-weight of a building is the most fundamental example: it is always present, does not change suddenly, and the structure simply sits at rest under it. In contrast, a dynamic load causes the structure to accelerate, generating additional internal forces beyond those from the load itself.

What is a static load example in a residential building?

Common static load examples in a house include the weight of the concrete slab or timber floor (dead load), the weight of roof tiles and battens (dead load), the weight of occupants and furniture on the floor (live load), and the lateral pressure of soil against a retaining wall (earth pressure). All of these are applied gradually and remain relatively constant, meeting the definition of a static load.

Are wind loads static or dynamic?

Wind is inherently dynamic because it fluctuates and causes structures to move. However, Australian Standards allow most buildings to be designed using equivalent static wind pressures derived from the dynamic wind behaviour. Full dynamic wind analysis is only required for tall, slender, or wind-sensitive structures where the simplified equivalent static approach is insufficient.

Do I need a dynamic analysis for my Melbourne home or extension?

No. Residential buildings in Melbourne are designed using static analysis for gravity loads and equivalent static methods for wind and earthquake. Full dynamic analysis is not required for standard residential construction. A structural engineer inspection and report will confirm the appropriate analysis approach for your specific project.

What are the load combinations used for static design in Australia?

Under AS 1170.0, the primary ultimate limit state combinations for static loads are 1.35G (dead load only), 1.2G + 1.5Q (dead plus live load), and 1.2G + 1.5Q + Wu (dead, live, and equivalent static wind). For serviceability design, 1.0G + 0.7Q applies for long-term deflection checks. These combinations account for the uncertainty in load magnitudes and the reduced probability that all loads act simultaneously at their maximum values.

What is the difference between a static load and an impact load?

An impact load is a type of dynamic load applied suddenly and over a very short duration, such as a vehicle striking a bollard or a dropped object hitting a floor. The short duration means the structure undergoes significant acceleration, generating inertial forces well above the equivalent static load. Structural engineers apply dynamic amplification factors when designing for impact loads to account for this effect.

How does a structural engineer assess dynamic loads from machinery?

The engineer obtains the machine’s operating frequency, mass, and out-of-balance forces from the manufacturer, then calculates the structure’s natural frequency and determines whether resonance is likely. If the natural frequency of the structure is close to the machine’s operating frequency, the engineer redesigns the supporting structure to shift the natural frequency away from the resonant zone, or specifies vibration isolation mounts. For complex machinery installations, a full vibration analysis may be required.
