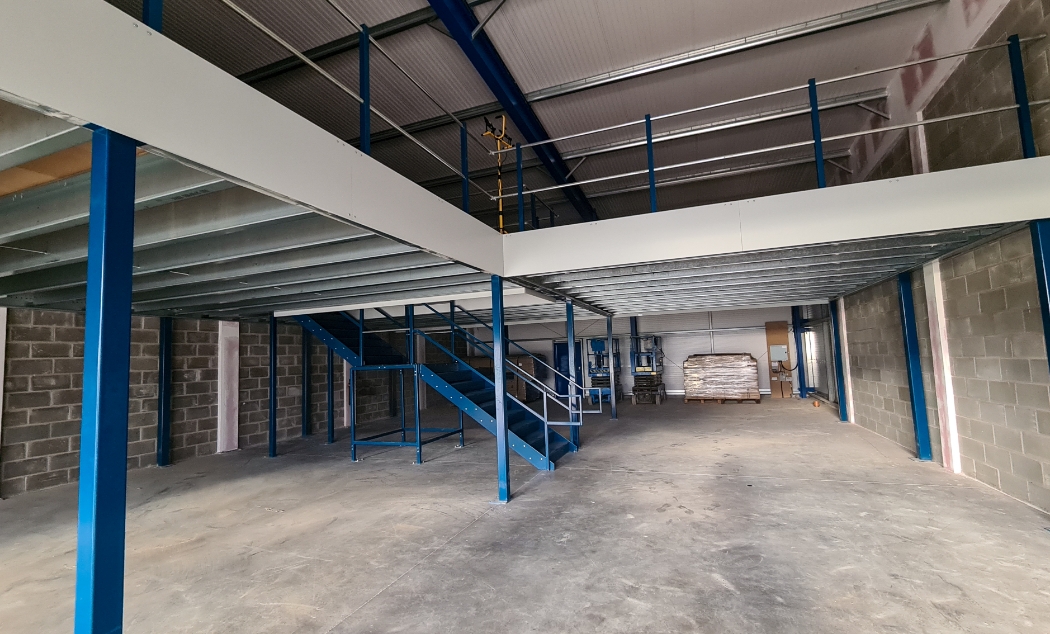

A structural mezzanine is an intermediate floor level constructed within an existing building volume. In warehouses, factories, and commercial premises, mezzanine floors create additional usable floor area without extending the building footprint. In Melbourne, all structural mezzanines requiring a building permit must be designed by a registered structural engineer. This guide covers what structural mezzanine design involves, the types of mezzanine structures in use, floor load ratings, permit requirements, and what the engineering process looks like.

Types of Structural Mezzanines

Not all mezzanines are structurally equivalent. The way a mezzanine transfers its load to the ground determines the engineering approach and the extent of existing building assessment required.

Freestanding mezzanines are the most common in Melbourne warehouses and industrial premises, because they impose loads on the existing slab rather than on building walls or the roof structure. This simplifies the existing building assessment but requires careful checking of slab thickness and reinforcement under column footings.

What a Structural Mezzanine Design Involves

A structural engineer's scope for a mezzanine typically includes design of the mezzanine structure itself and assessment of the existing building to confirm it can safely accept the new loads.

Floor Load Capacity and How It Is Determined

Floor load capacity is expressed in kilopascals (kPa), which represents the load per square metre of floor area. The NCC (formerly the Building Code of Australia) specifies minimum floor loads for different occupancy types. For mezzanines, the design floor load depends on what the space will be used for.

The floor load rating determines the beam and joist sizing, the column design, and the loads transmitted to the existing slab and footings below. Specifying the correct floor load at the design stage is essential: under-designing for actual use creates a safety risk, and over-designing drives unnecessary cost.

The structural engineer calculates the total load on each column (floor area tributary to that column multiplied by the design floor load, plus the self-weight of the structure). This column load is then checked against the bearing capacity of the existing slab. Where the slab is too thin or lacks adequate reinforcement, thickened footings or load-spreading plates are designed under each column.

Column Design and Spacing

Column spacing on a freestanding mezzanine is determined by the span capacity of the floor beams and joists. Wider column spacing allows more clear floor area below the mezzanine (important for forklift access or vehicle movement) but requires heavier beams. The engineer sizes the beams and joists to span between columns within acceptable deflection limits, then designs the columns to carry the accumulated floor loads to the slab.

Lateral Stability

A mezzanine structure must resist horizontal forces from wind (if there are openings in the building skin) and from movement of people and equipment on the floor. Lateral stability is typically provided by cross-bracing in the vertical plane between columns, rigid moment connections, or attachment to the building's own bracing system. The method depends on the mezzanine type and the available connections.

Existing Slab Assessment

For freestanding mezzanines, the existing concrete slab must be assessed to confirm it can carry the column point loads. Industrial slabs are typically 100 to 150 mm thick with light reinforcement, designed for distributed vehicle loads rather than concentrated column loads. The engineer reviews any available structural drawings, takes core samples if needed, and calculates the slab's capacity under the proposed column loads. Where the slab is inadequate, thickened pad footings are designed beneath each column location.

Mezzanine Design for Different Applications in Melbourne

The structural requirements of a mezzanine vary significantly by application. What works for a warehouse storage platform does not necessarily translate directly to an office mezzanine in a converted industrial building, or a retail display level in a high-street tenancy.

Warehouse and Industrial Mezzanines

Warehouse mezzanines in Melbourne are designed primarily for storage, with floor loads ranging from 3.0 kPa for general storage to 7.5 kPa or higher for pallet racking and heavy goods. Column spacing is set to allow forklift access below, typically 4 to 6 metres. Steel frame with profile steel decking is the most common floor system. The existing concrete slab must be checked for point loads under columns.

Office Mezzanines

Office mezzanines in warehouse or industrial settings are designed to a lower live load (typically 2.0 to 3.0 kPa) but require compliance with the NCC provisions for office occupancy, including means of egress, fire separation where required, and accessible design where applicable. The floor must also meet deflection limits for a comfortable working environment under walking loads.

Retail Mezzanines

Retail mezzanines in multi-level shop tenancies are designed for public access and must meet the same safety standards as any public floor. Floor loads of 4.0 kPa or higher are common. Staircase design, edge protection, and accessible access are integral parts of the structural scope. The engineer coordinates with the fitout designer and building surveyor to confirm the full compliance path.

Does a Structural Mezzanine Require a Building Permit in Victoria?

In most cases, yes. Under the Building Act 1993 and the NCC, a mezzanine floor is a building structure requiring a building permit. The permit application must include engineering drawings and calculations from a registered structural engineer, and the completed mezzanine is subject to inspection by the building surveyor.

The Compliance Process for Mezzanines in Victoria

Mezzanine Floor System Options

The structural floor system determines the dead weight of the mezzanine, the maximum span between supports, and the finish options for the floor surface.

Common Mezzanine Engineering Issues

The most frequent engineering problems encountered in existing mezzanines that were built without engineering oversight include:

• Column bases not properly anchored to the slab, relying on friction alone
• Existing slab inadequate for column point loads (punching shear failure risk)
• Excessive floor deflection under load (joists or beams undersized for the actual use)
• No lateral bracing, leaving the mezzanine susceptible to horizontal loads
• Inadequate edge protection or non-compliant stair design
• No building permit obtained, creating compliance and insurance issues at point of sale or lease

PBE provides structural assessments of existing mezzanines where compliance documentation is missing or where owners suspect the structure may not be adequate for current use.

Structural Mezzanine Engineering in Melbourne

Principal Built Engineering provides structural mezzanine design and assessment across Melbourne's industrial suburbs including Dandenong, Tullamarine, Braeside, Laverton, and the South East. The scope typically includes structural design, engineering drawings, and calculations for building permit submission, along with site visits during construction where needed.

For an existing mezzanine where a compliance certificate or engineering assessment is required, PBE provides a structural assessment report documenting the condition and structural adequacy of the existing structure. Where deficiencies are found, remediation options are recommended.

To discuss a mezzanine project in Melbourne, contact PBE with details of the building, the proposed mezzanine size, and the intended use. Most scopes can be quoted from these details without a site visit.

Frequently Asked Questions

Does a mezzanine require a structural engineer in Victoria?

A mezzanine floor that requires a building permit must be designed by a registered structural engineer. The engineering drawings and calculations form part of the building permit application submitted to the building surveyor. For mezzanines that fall below permit thresholds, engineering is not legally required but is recommended for any structure intended to support people or significant loads.

What floor load should I specify for my mezzanine?

The floor load depends on the intended use. Office mezzanines are typically designed for 2.0 to 3.0 kPa. General storage mezzanines are designed for 3.0 kPa minimum under NCC requirements. Heavy storage with pallet racking may require 5.0 kPa or higher. The structural engineer confirms the appropriate design load for the specific use, which then drives the beam, joist, and column sizing. Under-specifying the floor load to reduce structural costs creates a safety risk if the actual use is heavier than the design assumed.

Can an existing mezzanine be inspected and certified retrospectively?

Yes. PBE carries out structural assessments of existing mezzanines where no engineering documentation exists, or where the original documentation cannot be located. The assessment covers structural adequacy under the loads the mezzanine is expected to carry, compliance of the construction with what can be observed, and identification of any deficiencies. Where the mezzanine is found to be structurally adequate, a report documenting this is provided. Where deficiencies are found, remediation options are outlined. In some cases, retrospective building permit approval may also be required, which the building surveyor determines.
