Retaining Wall Design

A retaining wall holds back soil. That simple function hides a real engineering problem, because the forces soil exerts on a wall are large, they grow with depth, and they are amplified by groundwater, surcharge loads, and the reactive clay soils common across Melbourne. Most retaining wall failures are not caused by dramatic overloading. They are caused by poor drainage, a design that did not match the actual soil conditions, or a wall that was built with no engineering assessment at all. Principal Built Engineering provides Melbourne structural engineering services covering retaining wall design, drainage specification, and permit-ready documentation.

What Retaining Wall Design Involves

Retaining wall design begins with the site rather than the wall. The engineer establishes the retained height, the soil type, the groundwater conditions, any surcharge loads near the top of the wall, and the consequence if the wall were to fail. A garden wall with a lawn behind it is assessed very differently from a wall supporting a driveway with vehicle loading, or a wall next to a neighbouring building.

From that information the engineer selects a suitable wall type, calculates the forces acting on the wall, checks the wall for stability, designs the structural elements and footing, and specifies the drainage. The output is a set of structural drawings and specifications suitable for a building permit application. Getting the inputs right matters more than anything else, because the assumed soil properties directly govern the earth pressure the wall must resist.

How Retaining Walls Work

A retaining wall resists the lateral earth pressure exerted by the retained soil. This pressure increases with depth and is described by Rankine or Coulomb earth pressure theory depending on the wall type and drainage conditions. The wall must resist three separate failure modes. Overturning is the wall rotating forward away from the soil. Sliding is the wall moving forward along its base. Bearing failure is the wall sinking into the soil beneath the footing. A sound design checks all three with an adequate factor of safety.

For walls retaining water-saturated soil, hydrostatic pressure from groundwater is added to the earth pressure. This is why a wall designed for drained conditions fails when its drainage is blocked. The water pressure can more than double the total lateral force on the wall, pushing it well beyond what it was ever meant to carry.

Types of Retaining Wall

There is no single correct wall type. The right choice depends on the retained height, the site constraints, the soil, the budget, and the appearance the owner wants. The table below sets out the common types used across Melbourne, their typical height range, where they suit, and the main thing the engineer has to watch for each one.

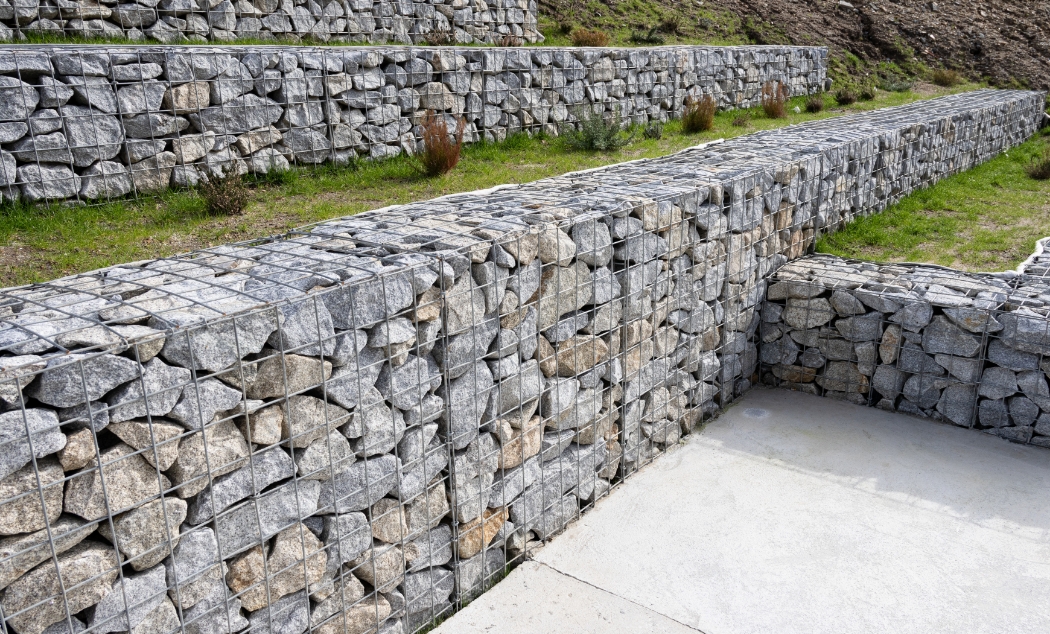

Mass and gravity walls rely on their own weight to stay put and suit low walls. Cantilever concrete walls are the workhorse for medium heights because the weight of retained soil sitting on the heel of the footing helps hold the wall down. Sleeper and segmental walls are popular on residential blocks for their appearance and speed of construction. Gabion walls drain freely and suit rural or sloping sites. Piled walls come into their own where the excavation is deep or the site is too tight for a wide footing.

Loads and Geotechnical Factors

The forces a retaining wall has to carry are set by the ground it holds back and by what sits near it. Four factors dominate the design.

• Soil type. Cohesive clay exerts higher lateral pressure than free-draining sand for the same depth, and its pressure is influenced by plasticity and moisture history.
• Surcharge. Any load near the top of the wall, such as a vehicle, a building, a driveway, or stockpiled material, adds pressure that the wall must be designed for.
• Water. Groundwater and rainfall build hydrostatic pressure behind the wall. Removing that water through drainage is the single biggest lever on the total load.
• Slope. Ground that slopes up behind the wall increases the retained mass and the pressure, and it changes how surcharge behaves.

Melbourne's Reactive Clay

Melbourne's metropolitan soils are predominantly reactive clay, classified under AS 2870 as Class M, H1, H2, and in some areas Class E. Reactive clay changes volume with moisture. It swells when wet and shrinks when dry, and this affects retaining walls in two ways. Clay exerts higher lateral pressures than granular soil for the same retained height, and seasonal swelling and shrinking generate cyclic loads that a simple static earth pressure check does not capture. The connection between the wall stem and footing has to be designed with that repeated movement in mind.

Drainage and Waterproofing

Because water is the biggest single risk to a retaining wall, drainage is designed as part of the structure rather than added at the end. A properly detailed wall includes a free-draining backfill zone directly behind the wall, a subsoil drain (an "agg" drain wrapped in filter fabric) at the base to collect water, weep holes or an outlet that discharges the collected water away from the wall, and filter fabric that stops fine soil clogging the drainage layer. On concrete walls, a waterproof membrane on the retained face protects the concrete and reinforcement from constant moisture. For more detail on why this matters, see retaining wall drainage.

When Does a Retaining Wall Need Engineering and a Permit in Victoria?

As a general rule, a retaining wall over one metre in height needs a building permit in Victoria, and structural engineering is required to support that permit. Height is not the only trigger, though. Several situations call for engineering regardless of the wall height.

• Any retaining wall over 1.0 m in height generally requires a building permit in Victoria.
• Walls next to a building, easement, or property boundary need engineering regardless of height.
• Walls that support a surcharge, such as a driveway, parking area, or nearby structure, need engineering design.
• Tiered or terraced walls where the combined retained height exceeds about one metre need engineering assessment, because upper walls surcharge the lower ones.
• Any wall retaining Class H2 or Class E reactive soil should have engineering regardless of height.

If there is any doubt about whether a wall needs a permit, a short conversation with a structural engineer or the local council building surveyor settles it quickly. It is far cheaper to confirm the requirement before building than to rectify an unpermitted wall afterwards. A structural engineer inspection is also the right first step when an existing wall is showing signs of movement.

The Design and Certification Process

Retaining wall design follows a clear sequence from site to signed documentation. Each step feeds the next, and skipping any of them is where problems begin.

Common Retaining Wall Failures

Most failures trace back to a small number of avoidable causes. Understanding them explains why proper design and drainage matter so much.

• Drainage failure. Blocked or absent subsoil drainage lets hydrostatic pressure build behind the wall. This is the most common cause of collapse, particularly after sustained rain.
• Surcharge overload. Vehicles, structures, or heavy materials placed near the top of the retained soil add lateral force the wall may never have been designed to carry.
• Inadequate footing. A footing that is too shallow or too narrow, especially in reactive clay, moves seasonally as the soil shrinks and swells.
• Soil type mismatch. A wall designed for granular sand but built in expansive clay behaves very differently, because clay pushes harder and reacts to water.
• No engineering at all. Walls built by guesswork have no verified load path, no stability check, and often no real drainage.

Frequently Asked Questions

Do I need a structural engineer to design a retaining wall?

For any wall over about one metre, next to a boundary or building, or carrying a surcharge such as a driveway, yes. A structural engineer calculates the earth, water, and surcharge loads, checks the wall for overturning, sliding, and bearing failure, designs the reinforcement and footing, and specifies drainage. The signed drawings and calculations are also what a building surveyor needs before issuing a permit. Low garden walls under about one metre with no surcharge can sometimes be built without engineering, but confirming this first is worthwhile.

How high can a retaining wall be before it needs a permit in Victoria?

As a general rule a retaining wall over one metre in height requires a building permit in Victoria. Height is not the only trigger, though. A wall under one metre can still need a permit and engineering if it is close to a building or boundary, supports a surcharge, or forms part of a tiered arrangement where the combined retained height exceeds one metre. The local council building surveyor can confirm the requirement for a specific site.

What are the main types of retaining wall?

The common types are mass or gravity walls (which rely on their own weight and suit low heights), cantilever reinforced concrete walls (the workhorse for medium heights), timber or concrete sleeper walls (popular on residential blocks), segmental interlocking block walls (often with geogrid reinforcement for taller walls), gabion rock-filled walls (which drain freely), and piled walls (soldier or sheet piles for deep or confined sites). The right choice depends on the retained height, the site, the soil, and the appearance wanted.

Does a retaining wall need drainage?

Almost always, yes. Water is the biggest single risk to a retaining wall. Without drainage, groundwater and rainfall build hydrostatic pressure behind the wall that can exceed the earth pressure it was designed for. A properly designed wall includes free-draining backfill, a subsoil drain wrapped in filter fabric at the base, and an outlet that discharges water away from the wall. On concrete walls a waterproof membrane on the retained face protects the concrete and reinforcement.

What loads does a retaining wall need to resist?

A retaining wall resists lateral earth pressure from the retained soil, which increases with depth, plus hydrostatic pressure from any groundwater, plus surcharge loads from anything sitting near the top of the wall such as vehicles, structures, or stockpiled material. The soil type, the slope of the ground behind the wall, and the drainage all change how large these forces are. The engineer combines them and checks the wall against overturning, sliding, and bearing failure.
