Engineering for warehouse buildings requires a different approach from residential or commercial structural design. The combination of heavy imposed loads, large column-free spans, overhead handling equipment, and operational requirements for level floors and high clearances creates a distinct set of structural engineering challenges. This guide covers the key structural design considerations for warehouse buildings in Melbourne.

Why Warehouse Structural Engineering Is Different

A residential floor is designed for a live load of 1.5 kPa. A warehouse floor commonly carries 20 to 40 kPa or more from racking systems and forklift traffic, with concentrated point loads from racking legs that can exceed 60 kN per leg. This difference in loading intensity means that structural engineering for warehouse buildings requires specific expertise and cannot be approached with the same assumptions used for residential or light commercial construction.

Beyond loading, warehouse structural design must address large span requirements for operational flexibility, strict floor flatness tolerances for forklift safety and racking stability, high wind loads on large wall and roof areas, and the integration of dock openings, overhead cranes, and mezzanine structures into the primary structural system.

Engineering for Warehouse Buildings: Six Key Considerations

1. Slab on Ground Design

The concrete floor slab is often the most critical structural element in a warehouse building, and the most common source of performance problems. Warehouse slabs must carry point loads from racking legs, distributed loads from bulk storage, and the dynamic loads of forklifts and heavy vehicles moving at speed.

Key slab design considerations include:

• Slab thickness appropriate for the imposed loads, typically 150mm to 250mm for warehouse applications
• Concrete strength and reinforcement to control cracking and limit long-term deflection
• Joint layout to manage shrinkage cracking, including saw-cut control joints and isolation joints around columns
• Floor flatness tolerances specified to the operational requirements (forklifts and high-bay racking require tighter tolerances than general storage)
• Sub-base preparation to provide a uniform, stable support for the slab
• Post-installed anchors for racking systems, designed to the manufacturer’s load specifications

A poorly designed or constructed warehouse slab is expensive to remediate and can render a facility unsuitable for its intended use. Structural engineering investment in the slab design is invariably cost-effective.

2. Portal Frame Sizing and Clear Height

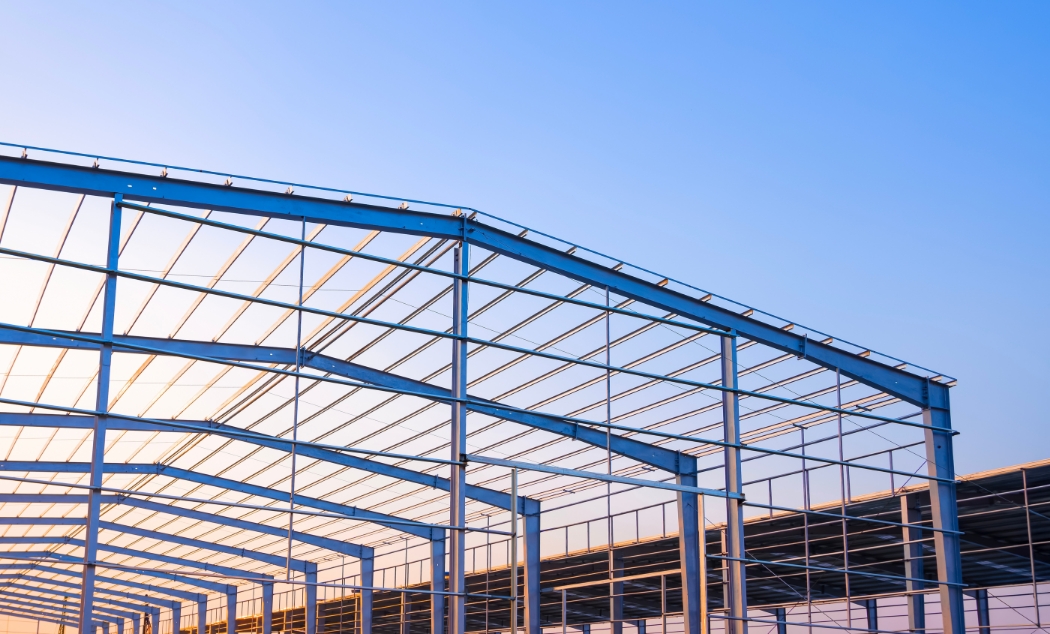

Steel portal frames are the dominant structural system for warehouse buildings in Melbourne. The portal frame consists of tapered or uniform steel columns and rafters connected at haunched moment connections, providing a rigid frame that resists both gravity and lateral (wind) loads without the need for bracing in the frame plane.

Portal frame design for warehouse buildings must consider:

• Clear height requirements for racking systems and overhead handling equipment
• Frame span to provide the required column-free floor area
• Rafter pitch for drainage of the roof sheeting
• Frame stiffness to limit horizontal sway under wind loads
• Purlin and girt spacing for cladding attachment
• End frame and intermediate frame geometry for openings at docks and doors

Typical portal frame spans for Melbourne warehouse buildings range from 20 metres to 50 metres, with eaves heights from 6 metres to 12 metres for standard applications. High-bay facilities for automated storage and retrieval systems can require eaves heights of 15 metres or more.

3. Crane and Hoist Structural Engineering

Warehouses and factories with overhead cranes or hoists require structural engineering that specifically addresses the dynamic loads from crane operation. Crane loads include the lifted load, the dead weight of the crane, horizontal surge and sway forces, and dynamic amplification factors prescribed by AS 1418.

Crane runway beams must be designed for fatigue as well as static strength, as repeated loading over the building’s life can cause fatigue cracking in connections and members. The columns and bracing systems supporting the crane runway must also be designed for the horizontal forces from crane operation.

Engineering for warehouse buildings that include cranes should involve the structural engineer from the earliest stage, as the crane loads have a significant effect on the column and foundation sizing and can influence the entire structural layout.

4. Wind Bracing for Warehouse Buildings

Large warehouse buildings present significant wind load areas to the wind. The structural system must resist these loads through a combination of portal frame action in the transverse direction and bracing systems in the longitudinal direction.

Longitudinal wind bracing in warehouse buildings is typically provided by:

• Rod or flat bar bracing in the roof and walls at each end of the building
• K-bracing or knee-bracing in the wall plane for larger buildings
• Braced bays positioned to minimise thermal restraint while providing adequate stiffness

Wall and roof cladding systems must also be designed for the wind pressures and suctions calculated to AS/NZS 1170.2 for the Melbourne wind region. Purlin and girt spacing is determined by the cladding system’s wind load capacity.

5. Dock and Opening Design

Loading dock openings, roller door openings, and personnel access doors interrupt the structural continuity of warehouse walls and must be carefully detailed to maintain structural integrity. Large openings in end frames or side walls require transfer structures (lintels, portal frames, or structural jambs) to carry the loads that would otherwise be carried by the interrupted wall section.

Dock leveller pits require specific structural detailing for the pit frame, and the slab at the dock face must be designed for the concentrated loads from trucks pulling up to the dock.

6. Foundation Engineering for Warehouse Sites

Warehouse building foundations must carry the concentrated loads from portal frame columns and the distributed loads from the floor slab. In Melbourne’s varied soil conditions, this requires geotechnical investigation and foundation design appropriate for the specific site.

Common foundation systems for Melbourne warehouse buildings include:

• Pad footings on rock or competent soils
• Bored concrete piers for sites with poor near-surface soils
• Raft foundations where soil conditions vary across the site
• Ground improvement methods (dynamic compaction, vibro-compaction) for sites on fill or soft soils

Concrete Tilt-Panel Construction for Warehouses

Concrete tilt-panel construction is the alternative to steel portal frames for larger Melbourne warehouse and distribution centre projects. Tilt panels are cast on the slab, then tilted up and propped while the roof structure is installed. Once the roof is connected, the panels become the permanent lateral load-resisting system.

Structural engineering for tilt-panel warehouse buildings requires panel reinforcement design for the combined out-of-plane wind loads and in-plane tilting loads, connection design for the panel-to-foundation, panel-to-panel, and panel-to-roof connections, and coordination with the precaster’s engineering team.

Mezzanine Structural Engineering in Warehouses

Mezzanine floors are a common way to increase usable floor area within an existing warehouse envelope without expanding the building. Structural engineering for warehouse mezzanines includes assessment of the existing structure’s capacity to carry the additional loads, design of the mezzanine framing and connections, and an engineers certificate for the building surveyor.

See Principal Built Engineering’s mezzanine structural design page for specific information on this service.

Common Causes of Warehouse Structural Problems

Principal Built Engineering’s structural assessments of existing warehouse buildings frequently identify the following as causes of structural performance problems:

• Floor slab designed for insufficient live load, particularly where the original use was lighter than the current operation
• Racking anchors installed without structural engineer assessment of the slab’s capacity
• Portal frame columns damaged by forklift impact, reducing their load-carrying capacity
• Unauthorised modifications to wall bracing or structural members
• Drainage problems causing water to pond against slab edges or column bases, leading to corrosion

If any of these conditions are present in your warehouse, a structural assessment by a chartered engineer is advisable. The firm’s structural engineer inspection service covers industrial buildings of all ages and types.

Warehouse Structural Engineering Melbourne: FAQs

What structural engineering is required for a new warehouse building in Melbourne?

Engineering for warehouse buildings in Melbourne requires structural design of the primary framing system (portal frame or tilt panel), floor slab, foundations, bracing system, mezzanines if included, and crane structures if applicable. The engineer provides drawings and calculations for the building permit application, and may provide construction support during the build.

How are portal frames designed for warehouse buildings?

Portal frame design involves calculating the gravity and wind loads on the frame, selecting frame geometry and member sizes to carry those loads within acceptable stress and deflection limits, and detailing the connections to transfer the design forces. Portal frames are designed to AS 4100 (steel structures), with frame analysis typically performed using specialist software.

What floor load should a warehouse be designed for?

Warehouse floor loads depend on the intended use. General storage warehouses typically require 7.5 kPa to 12 kPa, while high-bay racking systems with heavy pallet loads can require 20 kPa or more in the racking aisles. Point loads from racking legs often govern the slab design rather than the distributed load. A structural engineer should assess the specific racking system and loading before confirming the slab design requirements.

Do warehouse mezzanines require a structural engineer certificate?

Yes. Mezzanine floors in warehouses require a building permit and an engineers certificate confirming the mezzanine structure meets the National Construction Code and Australian Standards. The structural engineer also assesses the existing warehouse structure to confirm it can carry the additional loads. Principal Built Engineering provides mezzanine structural design and certification services across Melbourne.

How can I tell if a warehouse has structural problems?

Visible signs of structural issues in a warehouse include cracked or uneven floor slabs, tilting or bowed walls or columns, visible corrosion on structural steel, damaged or missing bracing, and racking anchor pull-out. If any of these are present, a structural assessment by a chartered engineer is recommended. Contact Principal Built Engineering to arrange a structural inspection.
